RudderStack integration routes FunnelFox events to all your analytics and marketing destinations through a single connection.
RudderStack integration settings

​
Features

  • Single Integration: Connect once, send everywhere
  • Data Transformation: Clean and enrich events in-flight
  • Warehouse First: Direct streaming to your data warehouse
  • Privacy Compliant: GDPR and CCPA ready
  • Event Replay: Replay events to new destinations
  • Real-time Streaming: Sub-second event delivery

​
Configuration

​
Prerequisites

  • RudderStack account with configured source
  • Write Key from RudderStack
  • Data Plane URL (for self-hosted or EU region)
  • Configured destinations in RudderStack

​
Setup Steps

1

Create JavaScript Source

  1. Log into RudderStack
  2. Go to Sources → New Source
  3. Select JavaScript SDK
  4. Name your source (e.g., “FunnelFox Funnels”)
  5. Copy the Write Key
2

Note Data Plane URL

Find your Data Plane URL:
  • RudderStack Cloud (US): https://yourdomain.dataplane.rudderstack.com
  • RudderStack Cloud (EU): https://yourdomain.eu-dataplane.rudderstack.com
  • Self-hosted: Your custom URL
3

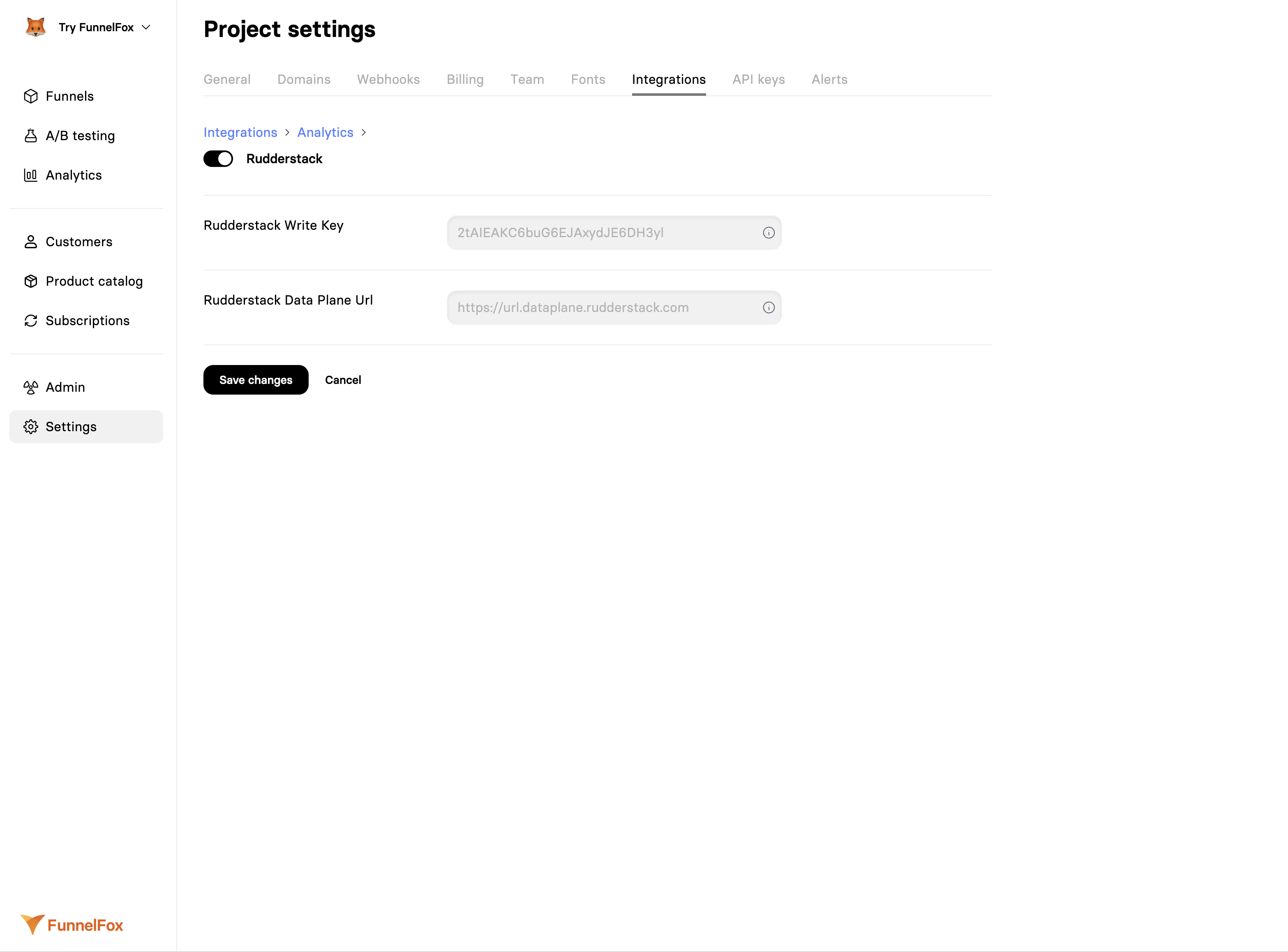

Configure in FunnelFox

  1. Go to Project Settings → Integrations → Analytics
  2. Toggle RudderStack on
  3. Paste your Write Key
  4. Enter your Data Plane URL
  5. Click Save changes
4

Configure Destinations

In RudderStack, connect destinations:
  • Analytics tools (Amplitude, Mixpanel, GA4)
  • Data warehouses (BigQuery, Snowflake, Redshift)
  • Marketing tools (Braze, Customer.io, Mailchimp)
  • CRMs (Salesforce, HubSpot)
5

Republish Funnels

Republish your funnels to activate tracking

​
Event Structure

RudderStack receives all standard events automatically from FunnelFox. Here’s what FunnelFox sends automatically:
// This is sent automatically by FunnelFox when a user views a page:
rudderanalytics.track('screen_presented', {
  funnel_id: 'welcome-flow',
  funnel_alias: 'Welcome Flow',
  page_index: 0,
  page_id: 'intro',
  profile_id: 'abc123',
  session_id: 'xyz789',
  sandbox: false
});

// When email is collected, FunnelFox automatically sends:
rudderanalytics.identify('fnlfx_abc123', {
  email: '[email protected]',
  createdAt: '2024-01-01T00:00:00Z'
});

​
Destination Mapping

RudderStack automatically maps events to destination-specific formats:
FunnelFox EventAmplitudeMixpanelGA4
screen_presentedPage ViewPage Viewedpage_view
purchase_completed_successRevenueRevenuepurchase
user_email_collectedIdentify$identifysign_up

​
Transformations

​
Built-in Transformations

RudderStack provides transformations for:
  • PII masking and hashing
  • Event filtering and sampling
  • Property renaming and enrichment
  • Custom event routing

​
Example Transformation

// Filter test events
export function transformEvent(event) {
  if (event.properties?.sandbox === true) {
    return null; // Drop test events
  }
  return event;
}

​
Warehouse Destinations

​
Schema Design

RudderStack creates tables for:
  • tracks: All event data
  • identifies: User profile updates
  • pages: Page view events
  • users: Consolidated user profiles

​
Column Mapping

FunnelFox PropertyWarehouse Column
profile_iduser_id
funnel_idcontext_funnel_id
page_indexproperties_page_index
sandboxproperties_sandbox

​
Advanced Features

​
Event Replay

Replay historical events to new destinations:
  1. Add new destination in RudderStack
  2. Use Event Replay feature
  3. Select date range
  4. Events are re-sent to new destination

​
Live Events

Monitor events in real-time:
  1. Go to Live Events in RudderStack
  2. Select your source
  3. Watch events flow through
  4. Debug transformations and mappings

​
User Groups

For organization-level tracking in your custom code:
// Add this to your funnel's custom code if needed:
rudderanalytics.group('company_123', {
  name: 'Acme Corp',
  plan: 'enterprise',
  employees: 1000
});

​
Troubleshooting

​
Performance Considerations

​
Batching

  • Events are batched for efficiency
  • Default batch size: 10 events
  • Default flush interval: 10 seconds

​
Queue Management

  • Events queued if connection fails
  • Automatic retry with exponential backoff
  • Queue persisted in localStorage

​
Page Load Impact

  • Asynchronous loading (~30KB SDK)
  • Non-blocking event sending
  • Minimal impact on page performance

​
Cost Optimization

To optimize your RudderStack usage:
  • Filter unnecessary events with transformations
  • Sample high-volume events
  • Batch similar events
  • Use warehouse as primary destination

​
Testing & Debugging

Use RudderStack’s Live Events feature to monitor events in real-time. This is the primary debugging tool for verifying your integration.

​
Best Practices

  • Use Live Events to verify event flow
  • Test with preview mode first
  • Document event mappings for each destination
  • Set up alerts for delivery failures
  • Apply transformations to clean data

​
